抗体纯选蛋白A亲和层析填料VH3,MabSelect™ VH3 protein A affinity resin

蛋白A层析填料,用于高效分离含有VH3序列家族的双特异性抗体 Fab、scFv和VHH。17549803;17549804;17549801;17549805;17549802;17-5498-03;17-5498-04;17-5498-01;17-5498-05;17-5498-02
货号(SKU): 17549301
增值税发票 √ 技术支持 √ 质量保障 √ 全程可追溯 √
¥25,500.00

MabSelect™ VL protein L resin

MabSelect™ VL resin — protein L resin for affinity capture of antibody Fabs, bispecifics, and other variants containing a kappa light chain.

MabSelect™ VH3亲和填料使用工程蛋白 A 配体,该配体仅与人抗体 VH3 序列家族的可变重链相互作用。这样可以有效分离双特异性抗体 (bsAb) 和片段,例如片段抗原结合区 (Fab)、单链可变片段 (scFv) 和重链可变重结构域 (VHH)。

MabSelect™ VH3 affinity resin uses an engineered protein A ligand that interacts only with the variable heavy chain of the VH3 sequence family of the human antibody. This allows for efficient separation of bispecific antibodies (bsAb) and fragments, such as fragment antigen-binding region (Fab), single-chain variable fragment (scFv), and variable heavy domain of heavy chain (VHH).

  • High binding capacity for bispecific antibodies and antibody fragments containing the VH3 sequence family.
  • Provides good resolution for product-related impurities in the capture of bispecific antibodies.
  • Excellent alkaline stability; stable when cleaned with 0.5 M NaOH, minimizing risk for bioburden incidents and providing a long resin lifetime.
  • A single interaction with the Fab VH3 region is beneficial over a dual-interaction affinity ligand, as separation of unwanted mispaired antibodies and fragments from target bsAb may be more efficient.

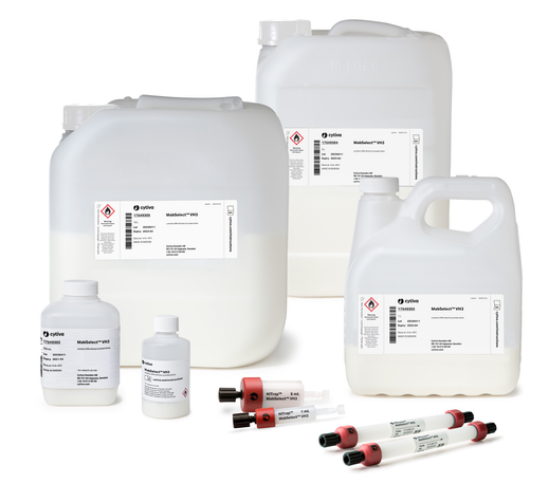

MabSelect™ VH3 chromatography resin in different formats

To support process development, manufacturing, and research, MabSelect™ VH3 resin is available in 25 mL, 200 mL, 1 L, 5L, and 10 L containers. The resin can also be ordered in prepacked formats such as HiTrap™ columnsHiScreen™ columnsPreDictor™ plates, and ReadyToProcess™ columns. Contact us to learn more.

Engineered for specific VH3 interaction

The ligand of MabSelect™ VH3 resin has been engineered to have affinity only for the variable region of the VH3 heavy chain. Traditional protein A resins have affinity for both the Fc region and the Fab VH3 region of human antibodies. In the ligand used in the MabSelect™ VH3 resin, the Fc interaction has been knocked out, and VH3 interaction has been enhanced. In bioprocessing, an affinity ligand with a single interaction with the Fab VH3 region is beneficial over a dual-interaction affinity ligand, as separation of unwanted mispaired antibodies and fragments from the target bispecific antibody (bsAb) may be more efficient. The VH3 sequence family is the most common VH class for antibodies in commercialized biologics.

Efficient separation of bsAb and antibody fragments

High dynamic binding capacity (DBC) allows high mass throughput of processed antibody per resin volume unit. It also provides productivity and process economy benefits. For a typical mAb (with VH3 sequence), MabSelect™ VH3 resin shows similar binding capacity as MabSelect PrismA™ resin. MabSelect™ VH3 resin showed significantly higher (70%) binding capacity for Fab compared to MabSelect PrismA™ resin. For VHH, MabSelect™ VH3 resin showed a higher (11%–14%) DBC compared to MabSelect PrismA™ resin.

Asymmetric bispecific antibodies can form product-related impurities such as homodimers, half antibodies, and an excess of light chains during cell culture. They are also prone to aggregation. The similarities between these impurities present extra challenges for downstream processes, especially post-capture. MabSelect™ VH3 resin and its novel selectivity enables separation in the capture step of asymmetric bispecific antibodies, where only one of the heavy chains includes the VH3 sequence family, from product-related entities.

Robust resin designed for harsh cleaning over many cycles

The alkaline stability of the MabSelect™ VH3 resin was evaluated in an accelerated alkaline stability study and in a repeated CIP cycling study with 0.5 M NaOH. The resin showed excellent alkaline stability when cleaned with 0.5 M NaOH.

Resin toolbox for the diversified antibody pipeline

Manufacturing platform approaches used for many traditional monoclonal antibodies (mAbs) are being adapted to fit respective antibody variant molecules. To provide the required purity and yield, a chromatography resin must be selected based on the domains of the target molecule, the impurity profile, and the antibody regions that the resin interacts with. Explore Cytiva's range of high-flow, modern affinity resins, including MabSelect™ VH3 resin, MabSelect PrismA™ resinMabSelect™ VL resin, and Capto™ polishing resins.



参数MabSelect™ VH3 resin
ApplicationAntibody affinity chromatography
BioProcess resinYes
Certificate of AnalysisYes
Dynamic binding capacity, QB10 1~ 70 mg mAb/mL resin at 6 min residence time ~ 60 mg mAb /mL resin at 4 min residence time
LigandAlkaline stabilized protein A-derived (E. coli), no interaction with the Fc region and enhanced interaction with the VH3 region
Ligand Coupling MethodEpoxy
MatrixHighly cross-linked agarose, spherical
Pack size25 mL
Particle Size 2~ 60 μm
Recommended maximum operational flow velocity 3   300 cm/h
pH stability, CIP 42.5 to 13.7
pH stability, operational 53 to 12
  • 1DBC at 10% breakthrough by frontal analysis at a mobile phase velocity of 100 cm/h (6 min residence time) and 150 cm/h (4 min residence time) in a HiScreen™ column at 10 cm bed height for mAb in PBS buffer, pH 7.4
  • 2 Median particle size of the cumulative volume distribution
  • 3Packed in an AxiChrom™ 300 column with 30 cm i.d. at 20 cm bed height, using buffers with the same viscosity as water at 20°C
  • 4pH range where resin can be operated without significant change in function
  • 5pH range where resin can be subjected to cleaning-in-place (CIP) without significant change in function
商品规格
属性名称属性值
储存温度 Storage temp.2-8°C冷藏
全球实时库存 Availability √美国St. Louis ≥ 20 | 欧洲Eur. ≥ 16 | 東京Tokyo ≥ 5 | 香港与北京 ≥ 20
