PBDTS-TDZ

图片 PBDTS-TDZ

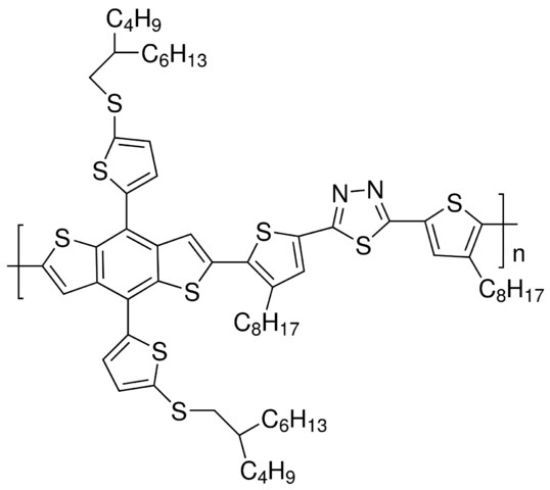

别名：PCE-13, PCE13, Poly[1,3,4-thiadiazole-2,5-diyl(3-octyl-2,5-thiophenediyl)[4,8-bis[(2-butyloctyl)thio]benzo[1,2-b:4, 5-b′]dithiophene-2,6-diyl](4-octyl-2,5-thiophenediyl)]

线性分子式: [C68H92N2S9]n NACRES: NA.23
制造商品牌: 西格玛 Sigma-Aldrich
货号（SKU）: 901871
签订合同 √ 正规发票 √ 技术支持 √ 质量保障 √ 全程可追溯 √
¥5,948.26

说明

应用

PBDTS-TDZ is a wide bandgap polymer that can be used as a donor for the fabrication of organic solar cells. It has alkylthio side chains, which help in strong optical absorption and high crystallinity. PBDTS-TDZ forms a composite with ITIC, which has an efficiency of ~18% for organic tandem solar cells.



属性

描述

Band gap: 2.09 eV

形式

powder

分子量

average Mn >30000
average Mw >60000

溶解性

THF: soluble
chlorobenzene: soluble
chloroform: soluble
dichlorobenzene: soluble
soluble (1,2,4-trimethylbenzene)
toluene: soluble
xylene: soluble

λmax

510 nm±10 nm (Solution)

轨道能量

HOMO -5.39 eV
LUMO -2.8 eV

PDI

<2.5



安全信息

储存分类代码

13 - Non Combustible Solids

WGK

WGK 3

商品规格
属性名称属性值
储存温度 Storage temp.常温阴凉避光
全球实时库存 Availability √美国St. Louis ≥ 50 | 欧洲Eur. ≥ 12 | 東京Tokyo ≥ 20 | 香港与北京 ≥ 50
