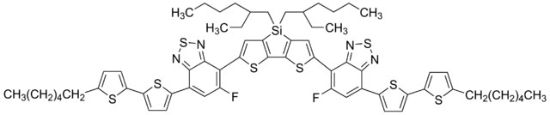

DTS(FBTTh2)2

别名:7,7′-[4,4-Bis(2-ethylhexyl)-4H-silolo[3,2-b:4,5-b′]dithiophene-2,6-diyl]bis[6-fluoro-4-(5′-hexyl-[2,2′-bithiophen]-5-yl)benzo[c][1,2,5]thiadiazole], F-DTS, p-DTS(FBTTh2)2

Empirical Formula (Hill Notation): C64H72F2N4S8Si 分子量: 1219.89 MDL编号: MFCD23704424 PubChem化学物质编号: 329767561 NACRES: NA.23
制造商品牌: 西格玛 Sigma-Aldrich
货号(SKU): 772380
MDL号: MFCD23704424
增值税发票 √ 免费送货 √ 订货电话:010-68689484
¥3,705.59

说明

DTS(FBTTh2)2 是一种可用作供体分子的导电聚合物。 它具有窄带隙,最大功率转换效率为 7.0%。 其光稳定性优于P3HT。

一般描述

DTS(FBTTh2)2 is a conductive polymer that can be used as a donor molecule. It has a narrow band gap and shows a maximum power conversion efficiency of 7.0%. Its photostability is more than that of P3HT.


应用

DTS(FBTTh2)2 can be used as a conjugating polymer that forms a donor-acceptor system with acceptor molecules such as perylene diimide, PC71BM and other fullerenes for the fabrication of bulk-heterojunction based solar cells.
Narrow band gap material for high-efficiency organic solar cells (OPVs) application
OPV Device Structure: ITO/MoOx/DTS(PTTh2)2: PC70BM/Al
  • JSC = 12.8 mA/cm2
  • VOC = 0.81 V
  • FF = 0.68
  • PCE = 7.0%



属性

形式

solid

质量水平

100

溶解性

chlorobenzene: 0.3-0.5% at 80 °C
dichlorobenzene: 0.3-0.5% at 80 °C
chloroform: soluble(lit.)
dichlorobenzene: soluble(lit.)

λmax

590 nm in chloroform

SMILES string

CCCCCCc1ccc(s1)-c2ccc(s2)-c3cc(F)c(-c4cc5c(s4)-c6sc(cc6[Si]5(CC(CC)CCCC)CC(CC)CCCC)-c7c(F)cc(-c8ccc(s8)-c9ccc(CCCCCC)s9)c%10nsnc7%10)c%11nsnc3%11

InChI

1S/C64H72F2N4S8Si/c1-7-13-17-19-23-41-25-27-49(71-41)51-31-29-47(73-51)43-33-45(65)57(61-59(43)67-77-69-61)53-35-55-63(75-53)64-56(79(55,37-39(11-5)21-15-9-3)38-40(12-6)22-16-10-4)36-54(76-64)58-46(66)34-44(60-62(58)70-78-68-60)48-30-32-52(74-48)50-28-26-42(72-50)24-20-18-14-8-2/h25-36,39-40H,7-24,37-38H2,1-6H3

InChI key

LNMKMESEJYZMDZ-UHFFFAOYSA-N



安全信息

储存分类代码

13 - Non Combustible Solids

WGK

WGK 3

商品规格
属性名称属性值
储存温度 Storage temp.常温阴凉避光
全球实时库存 Availability √美国St. Louis ≥ 55 | 欧洲Eur. ≥ 16 | 東京Tokyo ≥ 8 | 香港与北京 ≥ 10
