D205染料，D205 Dye；95% (HPLC)

图片 D205染料，D205 Dye；95% (HPLC)

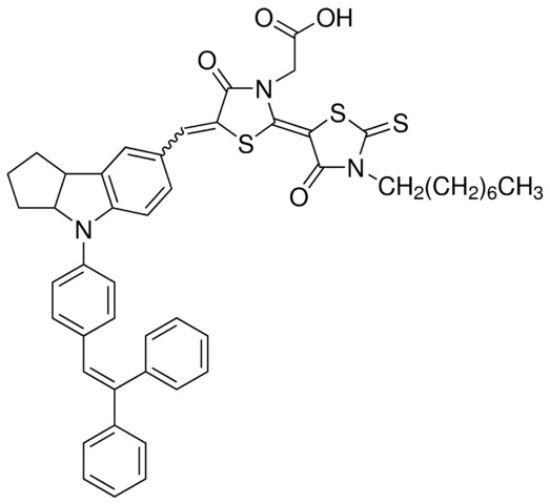

别名：5-[[4-[4-(2,2-二苯基乙烯基)苯基]-1,2,3,3a,4,8b-六氢环戊[b]吲哚-7-基]亚甲基]-2-(3-辛基 -4-氧代-2-硫代-5-噻唑烷亚基)-4-氧代-3-噻唑烷乙酸；二氢吲哚染料D205；紫色染料；5-[[4-[4-(2,2-Diphenylethenyl)phenyl]-1,2,3,3a,4,8b-hexahydrocyclopent[b]indol-7-yl]methylene]-2-(3-octyl-4-oxo-2-thioxo-5-thiazolidinylidene)-4-oxo-3-thiazolidineacetic acid, Indoline dye D205, Purple dye

Empirical Formula (Hill Notation): C48H47N3O4S3 CAS号: 936336-21-9 分子量: 826.10 PubChem化学物质编号: 329764994 NACRES: NA.23
制造商品牌: 西格玛 Sigma-Aldrich
货号（SKU）: 745618
CAS号: 936336-21-9
签订合同 √ 正规发票 √ 技术支持 √ 质量保障 √ 全程可追溯 √
¥2,655.16

说明

D205染料是一种广泛用作有机增感剂的二氢吲哚染料，可涂覆在金属氧化物上以提高其效率。 它主要用于开发基于能量的高性能设备。

一般描述

D205 Dye is an indoline dye widely used as an organic sensitizer that can be coated on metal oxide to improve its efficiency. It is majorly used in the development of high performing energy based devices.


应用

D205 dye is a metal-free organic dye that can be used in dye sensitized solar cells (DSSCs). It can achieve a power conversion efficiency of 9.5%.
Photosensitive Red-Violet dye having excellent photoelectric conversion efficiency as a metal-free dye.

Efficiency of DSSC device - ? > 9.5%
Cell area: 0.25 cm2 (0.5 cm × 0.5 cm)
TiO2 Thickness: 5 μm
TiO2: screen printing
Electrolyte: 0.1 M LiI; 0.05 M I2; 0.6 M Dimethylpropylimidazolium
Iodide; 0.05 M t-Butylpyridine in 3-Methoxypropionitrile
Light source: AM1.5
Counter Electrode: Pt/Cr spatter glass
Dye adsorption: 30 °C/ in 3 hr. (t-BuOH/acetonitrile soln.)


法律信息

Product of Mitsubishi Paper Mills; Ltd.



属性

质量水平

100

测定

95% (HPLC)

形式

powder

mp

247-252 °C

λmax

531, 392 nm

SMILES string

S=C(N(CCCCCCCC)C/1=O)SC1=C(S/C2=C\C(C=C3)=CC4=C3N(C5=CC=C(C=C(C6=CC=CC=C6)C7=CC=CC=C7)C=C5)C8C4CCC8)/N(CC(O)=O)C2=O

InChI

1S/C48H47N3O4S3/c1-2-3-4-5-6-13-27-49-46(55)44(58-48(49)56)47-50(31-43(52)53)45(54)42(57-47)30-33-23-26-41-39(29-33)37-19-14-20-40(37)51(41)36-24-21-32(22-25-36)28-38(34-15-9-7-10-16-34)35-17-11-8-12-18-35/h7-12,15-18,21-26,28-30,37,40H,2-6,13-14,19-20,27,31H2,1H3,(H,52,53)/b42-30-,47-44+

InChI key

WZGXSNHXTGGEGJ-PHBNZWDISA-N



安全信息

储存分类代码

13 - Non Combustible Solids

WGK

WGK 3

商品规格
属性名称属性值
储存温度 Storage temp.常温阴凉避光
全球实时库存 Availability √美国St. Louis ≥ 50 | 欧洲Eur. ≥ 12 | 東京Tokyo ≥ 20 | 香港与北京 ≥ 50
