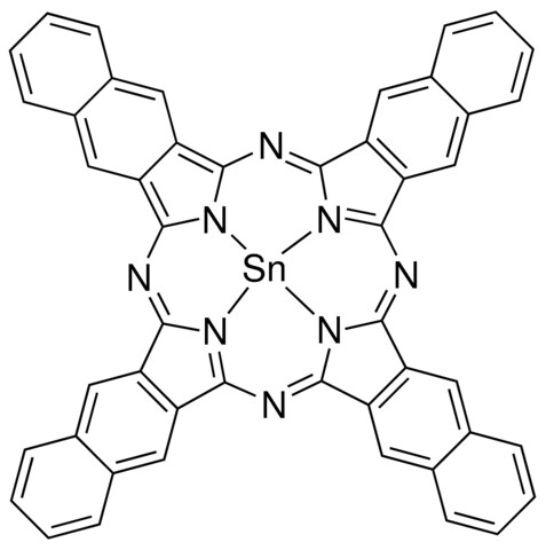

2,3-萘酞菁锡(II),Tin(II) 2,3-naphthalocyanine

Empirical Formula (Hill Notation): C48H24N8Sn CAS号: 110479-58-8 分子量: 831.47 MDL编号: MFCD00192501 PubChem化学物质编号: 329767140 NACRES: NA.23
制造商品牌: 西格玛 Sigma-Aldrich
货号(SKU): 764949
CAS号: 110479-58-8
MDL号: MFCD00192501
签订合同 √ 正规发票 √ 技术支持 √ 质量保障 √ 全程可追溯 √
¥1,500.98

说明

锡(II) 2,3-萘菁在有机光电二极管和太阳能电池中广泛应用,因为它在红外区具有很强的吸收能力。这提高了有机光伏(OPV)电池的功率转换效率(PCE),因为它吸收了占太阳光子通量50%的电磁波谱近红外和红外部分的光。
用于合成具有近红外吸收和高消光系数的萘菁基纳米晶薄膜的无机薄膜器件。

一般描述

Tin (II) 2,3-naphthalocyanine is widely used in organic photodiodes and solar cells since it exhibits very strong absorption in the infrared region (IR).This increases the power conversion efficiencies (PCE) of organic photovoltaic (OPV) cells since it absorbs light in the near infrared and infra-red portions of the electromagnetic spectrum which accounts for 50% of the solar photon flux.


应用

Used in the synthesis of naphthalocyanine based nano-crystalline thin films which show near IR absorption and high extinction coefficient inorganic thin film devices.



属性

形式

powder

质量水平

100

mp

>400 °C

λmax

735 nm in chloronaphthalene
789 nm in chloronaphthalene
830 nm in chloronaphthalene

SMILES string

[SnH2]1n2c3nc4nc(nc5n1c(nc6nc(nc2c7cc8ccccc8cc37)c9cc%10ccccc%10cc69)c%11cc%12ccccc%12cc5%11)c%13cc%14ccccc%14cc4%13

InChI

1S/C48H24N8.Sn/c1-2-10-26-18-34-33(17-25(26)9-1)41-49-42(34)54-44-37-21-29-13-5-6-14-30(29)22-38(37)46(51-44)56-48-40-24-32-16-8-7-15-31(32)23-39(40)47(52-48)55-45-36-20-28-12-4-3-11-27(28)19-35(36)43(50-45)53-41;/h1-24H;/q-2;+2

InChI key

SCYVSSHNBKWAKE-UHFFFAOYSA-N



安全信息

象形图

Exclamation mark

警示用语:

Warning

危险声明

危险分类

Eye Irrit. 2 - Skin Irrit. 2 - STOT SE 3

靶器官

Respiratory system

储存分类代码

6.1C - Combustible, acute toxic Cat.3 / toxic compounds or compounds which causing chronic effects

WGK

WGK 3

商品规格
属性名称属性值
储存温度 Storage temp.常温阴凉避光
全球实时库存 Availability √美国St. Louis ≥ 20 | 欧洲Eur. ≥ 16 | 東京Tokyo ≥ 5 | 香港与北京 ≥ 20
