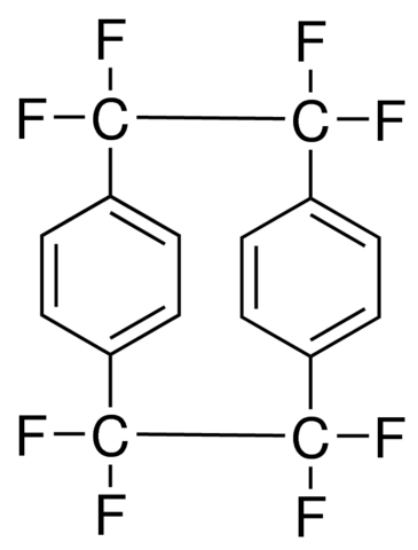

1,1,2,2,9,9,10,10-八氟[2.2]对环烷，1,1,2,2,9,9,10,10-Octafluoro[2.2]paracyclophane；99% (GC)

图片 1,1,2,2,9,9,10,10-八氟[2.2]对环烷，1,1,2,2,9,9,10,10-Octafluoro[2.2]paracyclophane；99% (GC)
别名：1,1,2,2,9,9,10,10-八氟-对-环烷；2,2,3,3,8,8,9,9-八氟三环[8.2.2.24,7]十六-4,6,10,12,13,15-己烯；α-全氟二对二甲苯；亚芳基 AF 4 二聚体；1,1,2,2,9,9,10,10-Octafluoro-p-cyclophane, 2,2,3,3,8,8,9,9-octafluorotricyclo[8.2.2.24,7]hexadeca-4,6,10,12,13,15-hexaene, α-Perfluorodi-p-xylene, Parylene AF 4 dimer

Empirical Formula (Hill Notation): C16H8F8 CAS号: 3345-29-7 分子量: 352.22 MDL编号: MFCD13194972 PubChem化学物质编号: 329768701
制造商品牌: 西格玛 Sigma-Aldrich
货号（SKU）: 799297
CAS号: 3345-29-7
MDL号: MFCD13194972
签订合同 √ 正规发票 √ 技术支持 √ 质量保障 √ 全程可追溯 √
¥2,645.10

说明

一般描述

Characteristics of Parylen AF4 coating:
Specialties:
  • Unmatched UV stability
  • Excellent thermal stability at high service temperature (350)
  • Unmatched oxidation stability
  • Completely conformal coating
  • Superior crevice penetration, pin hole free
  • Anti-saline damage
  • Anti-stick ion

Barrier properties:
  • Chemical insolubility and solvent resistant
  • Low water absorption
  • Hydrophobic properties
  • Low gas permeability , no out-gassing

Physical & mechanical properties:
  • Transparent
  • Light-weight and ultra-thin
  • Low CTE
  • Low coefficient of friction
  • Good dry lubricity
  • Abrasion resistance
  • Stabilization of components and structures
  • Particulate immobilization

Electrical properties:
  • Electrical insulation
  • High dielectric strength
  • High volume resistivity ,ohm-cm
  • Low dissipation factor
  • Low dielectric constant
  • Mitigation of tin whisker growth

Biocompatibility and bio-stability
  • USP class VI
  • Microorganism resistance

应用

Parylen AF4 is extremely useful in high temperature applications and those in which long-term UV stability is required.
  • Aerospace
  • Military
  • Electronic
  • Medical
  • Industrial
  • Semiconductor (3D IC TSV electrical insulation , AMOLED De-bonding layer , Barrier layer )
  • Bio-MEMS electrode protection film
  • EWD (Electro Wetting Device) Liquid lens



属性

质量水平

100

测定

99% (GC)

形式

powder

mp

240-250 °C

SMILES string

FC1(F)C2=CC=C(C(F)(F)C(F)(F)C3=CC=C(C1(F)F)C=C3)C=C2

InChI

1S/C16H8F8/c17-13(18)9-1-2-10(4-3-9)14(19,20)16(23,24)12-7-5-11(6-8-12)15(13,21)22/h1-8H

InChI key

KCKIWSAAWFKXMA-UHFFFAOYSA-N



安全信息

储存分类代码

13 - Non Combustible Solids

WGK

WGK 3

商品规格
属性名称属性值
储存温度 Storage temp.常温阴凉避光
全球实时库存 Availability √美国St. Louis ≥ 50 | 欧洲Eur. ≥ 12 | 東京Tokyo ≥ 20 | 香港与北京 ≥ 50
