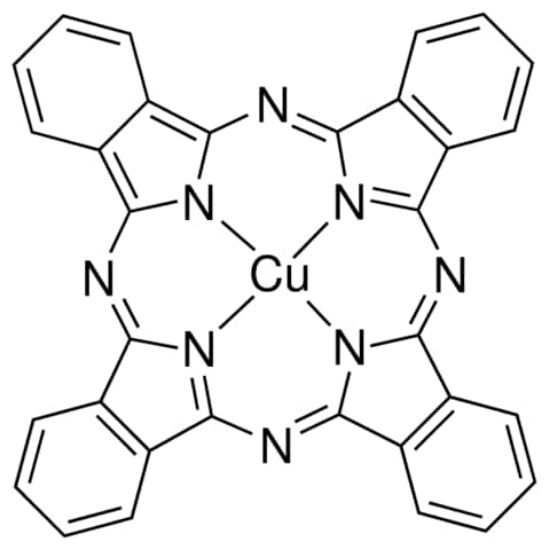

酞菁铜(II)，Copper(II) phthalocyanine [CuPc]；β-form, Dye content 90 %

质量水平

100

组成

Dye content, 90%

λ_max

678 nm

OLED设备性能

ITO/CuPc/NPD/Alq₃/C₆₀/Mg:Ag

• Color: green
• Max. Luminance: 17200 Cd/m²

ITO/CuPc/NPD/Alq₃/LiF/Al

• Color: red
• Max. Luminance: 2000 Cd/m²
• Turn-On Voltage: 7.5 V

ITO/CuPc/NPD/CBP:FIrpic (6%)/BAlq₃/LiF/Al

• Color: blue
• Max. EQE: 4.5 %

OPV设备性能

ITO/CuPc/PTCDA/In

• Short-circuit current density (J_sc): 53.1 mA/cm²
• Open-circuit voltage (V_oc): 0.57 V
• Fill Factor (FF): 0.61
• Power Conversion Efficiency (PCE): 4.2 %

ITO/PEDOT:PSS/CuPc/C60/BCP/Al

• Short-circuit current density (J_sc): 18.8 mA/cm²
• Open-circuit voltage (V_oc): 0.58 V
• Fill Factor (FF): 0.52
• Power Conversion Efficiency (PCE): 3.6 %

SMILES string

c1ccc2c(c1)C3=NC4=[N@@H]5C(=Nc6n7c(N=C8c9ccccc9C%10=[N@@H]8[Cu]57N3C2=N%10)c%11ccccc6%11)c%12ccccc4%12

InChI

1S/C32H16N8.Cu/c1-2-10-18-17(9-1)25-33-26(18)38-28-21-13-5-6-14-22(21)30(35-28)40-32-24-16-8-7-15-23(24)31(36-32)39-29-20-12-4-3-11-19(20)27(34-29)37-25;/h1-16H;/q-2;+2

InChI key

XCJYREBRNVKWGJ-UHFFFAOYSA-N
