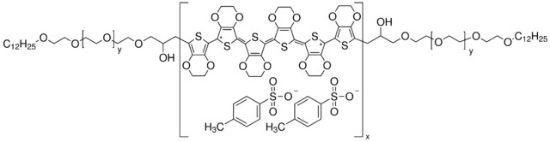

聚(3,4-乙烯二氧噻吩),双聚(乙二醇),月桂基封端，Poly(3,4-ethylenedioxythiophene), bis-poly(ethyleneglycol), lauryl terminated [PEDOT:PEG]；0.8 wt. % (dispersion in 1,2-dichlorobenzene), contains p-toluenesulfonate as dopant

Aedotron^™ polymers are solvent-dispersable forms of PEDOT. These are copolymers of doped PEDOT and a flexible, soluble polymer such as poly(ethylene glycol) (PEG). These colloidal dispersions are stabilized by the highly solvated PEG chains which sterically limit the aggregation of the PEDOT blocks. Aedotron polymers are neither acidic nor corrosive, it easily disperses in polar aprotic solvents.

Sheet resistance, spin cast thin films: 10⁶-10⁸ Ohms/sq

Average transmittance: 60-85%

General purpose, moderately conductive dispersion in chlorinated solvents



Conducting polymer dispersion suitable for making conducting films, anti-static layers and transparent electrodes. 1,2 Dichlorobenzene can be used to cast robust films on many polymeric substrates, but should be tested in each case.



The block copolymer structure renders the conducting polymer PEDOT highly dispersible in organic solvents. dichlorobenzene is compatible with many coatings and polymers formulations.



May settle over time. Must be sonicated before use



Aedotron is a trademark of TDA Research, Inc.
