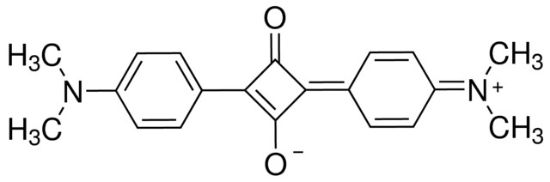

二氢氧化1,3-二[4-(二甲氨基)苯基]-2,4-二羟基环丁烯二鎓二(内盐),1,3-Bis[4-(dimethylamino)phenyl]-2,4-dihydroxycyclobutenediylium dihydroxide, bis(inner salt);Dye content 90 %

别名:方酸菁染料III;Squarylium dye III; Empirical Formula (Hill Notation): C20H20N2O2 CAS号: 43134-09-4 分子量: 320.39 MDL编号: MFCD00142504 PubChem化学物质编号: 24848931 NACRES: NA.23
制造商品牌: 西格玛 Sigma-Aldrich
货号(SKU): 149063
CAS号: 43134-09-4
MDL号: MFCD00142504
签订合同 √ 正规发票 √ 技术支持 √ 质量保障 √ 全程可追溯 √
¥2,022.12

说明

二氢氧化1,3-二[4-(二甲氨基)苯基]-2,4-二羟基环丁烯二鎓二(内盐)是一种以吸电子方酸为中心基团和强给电子二甲氨基苯基的有机染料。 它主要用于有机电子器件的开发。

一般描述

1,3-Bis[4-(dimethylamino)phenyl]-2,4-dihydroxycyclobutenediylium dihydroxide, bis(inner salt) is an organic dye with an electron withdrawing squaraine as the central group and strong electron donating dimethylaminophenyl groups. It is majorly utilized in the development of organic electronic devices.



属性

形式

solid

组成

Dye content, 90%

mp

>300 °C (lit.)

λmax

625 nm

SMILES string

CN(C)c1ccc(cc1)C2=C([O-])C(=C3/C=CC(\C=C3)=[N+](\C)C)\C2=O

InChI

1S/C20H20N2O2/c1-21(2)15-9-5-13(6-10-15)17-19(23)18(20(17)24)14-7-11-16(12-8-14)22(3)4/h5-12H,1-4H3

InChI key

HERJDZWHZQOZLU-UHFFFAOYSA-N



安全信息

象形图

Exclamation mark

警示用语:

Warning

危险声明

危险分类

Eye Irrit. 2 - Skin Irrit. 2 - STOT SE 3

靶器官

Respiratory system

储存分类代码

11 - Combustible Solids

WGK

WGK 3

个人防护装备

dust mask type N95 (US), Eyeshields, Gloves

商品规格
属性名称属性值
储存温度 Storage temp.常温阴凉避光
全球实时库存 Availability √美国St. Louis ≥ 50 | 欧洲Eur. ≥ 12 | 東京Tokyo ≥ 20 | 香港与北京 ≥ 50
